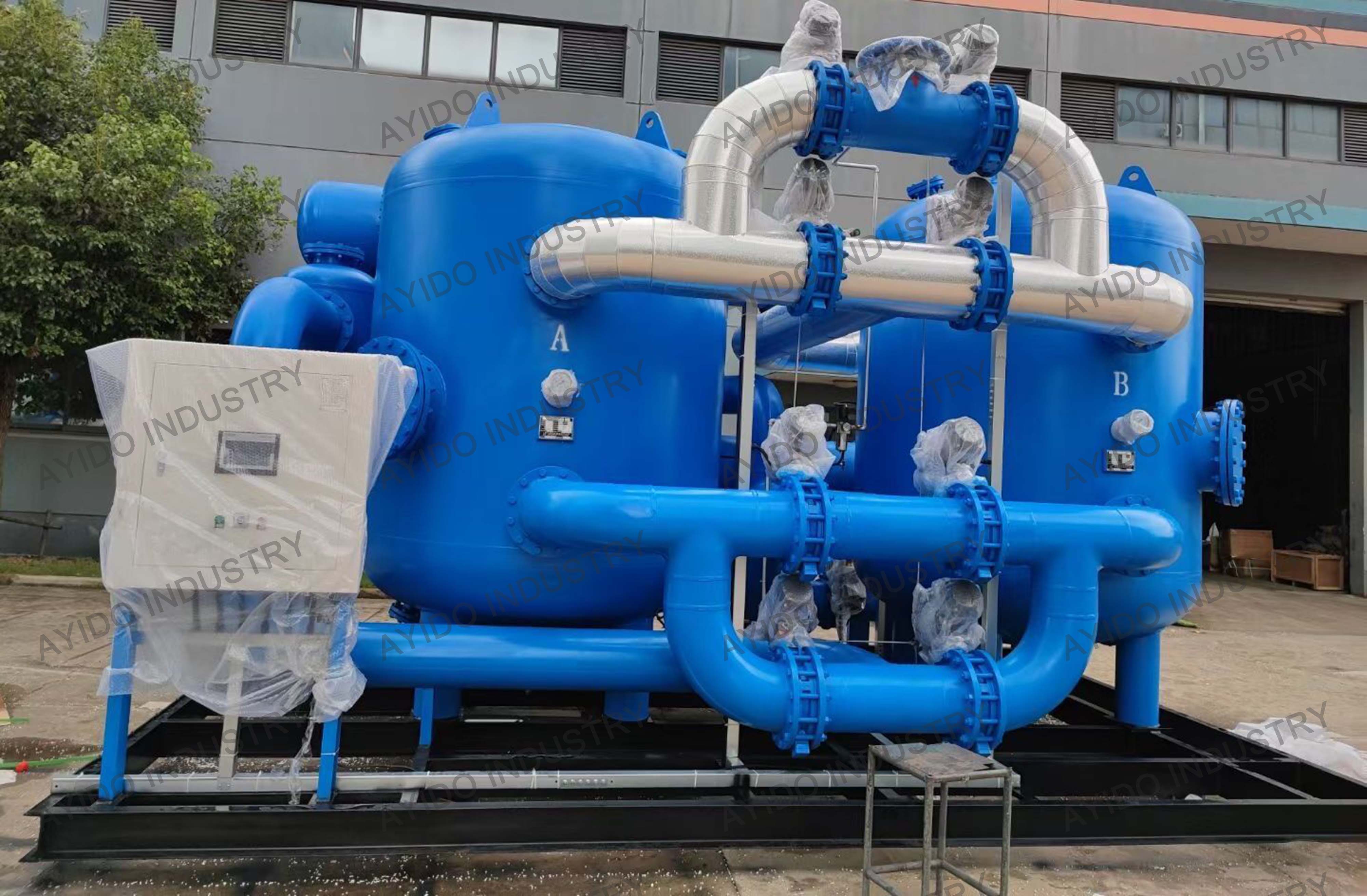

Zero air loss heat of compression regenerative desiccant air dryer is to use the heat, which comes from compressor high temperature exhaust, to directly heat up regenerative desiccant. It cancels the heated regenerative electric heater. Meanwhile because of zero air loss during heating regeneration, it save the energy at the most. This model air dryer really reach zero air loss
Working Condition Requirements and Technical Index
Pressure dew point：-10℃~-40℃
Inlet air temperature：120℃~180℃（Nominal150℃）
Work cycle：4~8 hours
Inlet oil residual:≤0.1PPM
Working pressure:0.6~0.95MPa
Pressure loss：≤0.04MPa；
Ambient temperature：2℃~38℃
Regenerative air loss：0%
Cooling water temperature：≤32℃
Cooling water pressure：0.2~0.4 MPa
Control method: PLC Programmable control
Installation method: indoor, anchor bolt installation
Selection Specification Sheet
|
Model |
Capacity m³/min |
Dimension mm |
Connection Size |
Cooling Water Circulation Volume(T/h) |
Power supply |
Weight |
||
|
Length |
Width |
Height |
||||||
|
RGDLI-150 |
15 |
2100 |
1200 |
2000 |
DN65 |
9.7 |
220V /Single phase /50Hz Electrical Grade IP54 |
1700 |
|
RGDLI-250 |
25 |
2300 |
1500 |
2300 |
DN80 |
16 |
1900 |
|
|
RGDLI-350 |
35 |
2500 |
1600 |
2400 |
DN80 |
23 |
3200 |
|
|
RGDLI-450 |
45 |
2800 |
1750 |
2450 |
DN100 |
29 |
4000 |
|
|
RGDLI-550 |
55 |
3030 |
1750 |
2500 |
DN100 |
35 |
4800 |
|
|
RGDLI-650 |
65 |
3210 |
2050 |
2580 |
DN125 |
42 |
5200 |
|
|
RGDLI-850 |
85 |
3600 |
2200 |
2600 |
DN125 |
55 |
6000 |
|
|
RGDLI-1000 |
100 |
3800 |
2340 |
2700 |
DN125 |
65 |
7500 |
|
|
RGDLI-1250 |
125 |
3900 |
2340 |
2700 |
DN125 |
81 |
8500 |
|
|
RGDLI-1500 |
150 |
4350 |
2600 |
2950 |
DN150 |
97 |
12500 |
|
|
RGDLI-1800 |
180 |
4500 |
2700 |
3150 |
DN200 |
116 |
14000 |
|
|
RGDLI-2000 |
200 |
4800 |
2800 |
3200 |
DN200 |
129 |
15500 |
|
|
RGDLI-2500 |
250 |
5100 |
3200 |
3400 |
DN200 |
161 |
18000 |
|
|
RGDLI-3000 |
300 |
5500 |
3400 |
3450 |
DN250 |
194 |
25000 |
|
|
RGDLI-3500 |
350 |
6000 |
3600 |
3500 |
DN250 |
226 |
30000 |
|
Remark： DN is flange connection, flange standard is HG/T 20592-2009DN Power consumption：100W
Power supply optional 380V/3ph/50Hz auxiliary heating
Over 350 cubic meters or other special standards can be customized
If the model, specification and color change, please be subject to actual product, there will be not further notice
