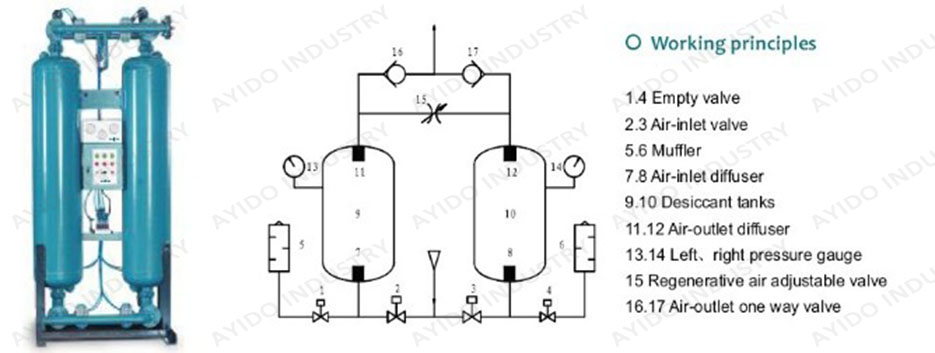

The working principle of heatless regenerative desiccant air dryer is taking the theory of Pressure Change Adsorption.
The desiccant absorbs moisture of compressed air under the pipe network's pressure, then adsorption under the atmosphere pressure. Retrieving some dry air from the outlet of dryer to dehydrate the desiccant,adsorption in one tank and desorption in the other tank, two tanks work alternately and recycle, so the clean and dry compressed air will be supplied continually.
Working Condition & Parameters:
Air inlet Temp.:2～45℃
Dew point pressure: -20～-40℃
Working pressure: 0.6-0.95MPa
Regenerative air capacity: ≤14%
Inlet air oil content: ≤0.1PPM
Controls: computer-control
Desiccant: activated alumina
Installation method: indoor, anchor bolt installation
Specifications:
|
Model |
Flow rate |
Dimension mm |
Inlet/Outlet |
Power |
Weight |
||
|
( m3/min ) |
L |
W |
H |
Size |
Supply |
（kg） |
|
|
MTDN-1 |
1.2 |
600 |
540 |
1680 |
R1/2 |
220V 50Hz SINGLE PHASE |
78 |
|
MTDN-2 |
2.3 |
739 |
700 |
1660 |
R3/4 |
150 |
|
|
MTDN-3 |
3.6 |
739 |
700 |
1906 |
R1-1/4 |
235 |
|
|
MTDN-5 |
5.2 |
900 |
885 |
1880 |
R1-1/2 |
275 |
|
|
MTDN-6 |
6.5 |
950 |
925 |
1760 |
R1-1/2 |
336 |
|
|
MTDN-8 |
8.5 |
1024 |
1000 |
1845 |
DN50 |
375 |
|
|
MTDN-10 |
11 |
1024 |
1000 |
1995 |
DN50 |
420 |
|
|
MTDN-13 |
13.5 |
1024 |
1000 |
2320 |
DN50 |
480 |
|
|
MTDN-15 |
17 |
1200 |
1000 |
2180 |
DN65 |
560 |
|
|
MTDN-20 |
22 |
1332 |
1200 |
2345 |
DN65 |
740 |
|
|
MTDN-25 |
27 |
1332 |
1200 |
2345 |
DN80 |
740 |
|
|
MTDN-30 |
32 |
1382 |
1200 |
2152 |
DN80 |
900 |
|
|
MTDN-35 |
37 |
1466 |
1200 |
2370 |
DN80 |
1140 |
|
|
MTDN-40 |
45 |
1633 |
1370 |
2464 |
DN80 |
1450 |
|
|
MTDN-50 |
55 |
1730 |
1400 |
2684 |
DN100 |
1800 |
|
|
MTDN-60 |
65 |
1936 |
1400 |
2670 |
DN125 |
2180 |
|
|
MTDN-85 |
85 |
2136 |
1500 |
2737 |
DN125 |
2500 |
|
|
MTDN-110 |
110 |
2440 |
1850 |
2912 |
DN150 |
3200 |
|
|
MTDN-130 |
130 |
3360 |
1960 |
2950 |
DN150 |
3500 |
|
|
MTDN-160 |
160 |
3360 |
1960 |
3100 |
DN150 |
4600 |
|
|
MTDN-190 |
190 |
3360 |
2060 |
3200 |
DN200 |
5500 |
|
|
MTDN-220 |
220 |
3146 |
2540 |
3490 |
DN200 |
6900 |
|
