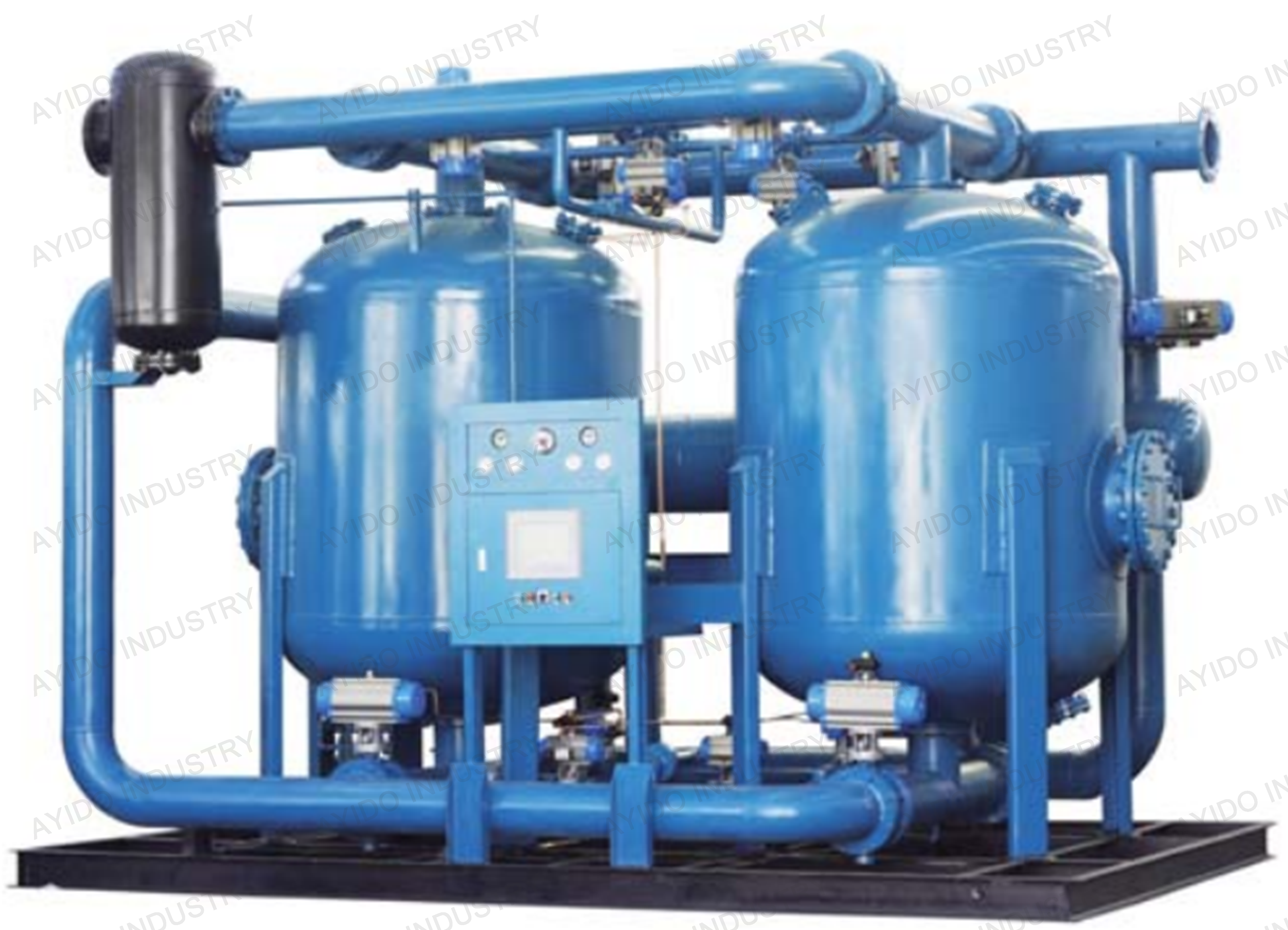

Heat of compression regenerative desiccant air dryer is made of cooler, air water separator dust filter, switch valve and two towers filled with desiccant. It is used in conjunction with air compressor. It regenerate the desiccant by the heat of unsaturated high temperature compressed air which is exhausted from air compressor , which dehydrates and dries the desiccant.
Working Condition Requirements and Technical Index
Pressure dew point：-12～-40℃ Work cycle：4～8 hours
Inlet air temperature: 120～180℃Inlet oil residual:≤0.1PPM
Working pressure: 0.6-0.95MPa（Nominal）Pressure loss≤0.04MPa
Ambient temperatur: 2℃~38℃Average regeneration air loss: ≤1%
Control method: computer-control
Installation method: indoor, anchor bolt installation
Can effectively recycle heat that air compressor exhausts and increase the use ratio of product energy consumption according to client's request
Selection Specification Sheet
|
Model |
Capacity m³/min |
Dimension mm |
Power Supply |
Inlet/Outlet Size |
Cooling water Circulation volume(T/h) |
Weight(kg) |
||
|
Length |
Width |
Height |
||||||
|
RGDLN-150 |
15 |
2000 |
1400 |
2300 |
220V Single phase 50Hz |
DN65 |
7.5 |
1200 |
|
RGDLN-250 |
25 |
2400 |
1600 |
2400 |
DN80 |
12.5 |
2000 |
|
|
RGDLN-350 |
35 |
2500 |
1700 |
2500 |
DN80 |
18 |
2600 |
|
|
RGDLN-450 |
45 |
2800 |
1800 |
2600 |
DN80 |
23 |
3000 |
|
|
RGDLN-550 |
55 |
3000 |
1900 |
2700 |
DN100 |
28 |
3500 |
|
|
RGDLN-650 |
65 |
3200 |
2000 |
2800 |
DN125 |
33 |
4200 |
|
|
RGDLN-850 |
85 |
3400 |
2200 |
2900 |
DN125 |
43 |
4800 |
|
|
RGDLN-1000 |
100 |
3700 |
2200 |
3100 |
DN125 |
50 |
6500 |
|
|
RGDLN-1250 |
125 |
3900 |
2300 |
3100 |
DN150 |
63 |
8500 |
|
|
RGDLN-1500 |
150 |
4300 |
2450 |
3150 |
DN200 |
75 |
10000 |
|
|
RGDLN-2000 |
200 |
4600 |
2800 |
3420 |
DN200 |
100 |
12500 |
|
|
RGDLN-2200 |
220 |
4750 |
2900 |
3300 |
DN200 |
110 |
13800 |
|
|
RGDLN-2500 |
250 |
4750 |
2950 |
3500 |
DN200 |
125 |
15500 |
|
|
RGDLN-3000 |
300 |
5200 |
3200 |
3650 |
DN300 |
150 |
17500 |
|
|
RGDLN-4000 |
400 |
5600 |
3400 |
3800 |
DN300 |
200 |
25000 |
|
|
RGDLN-5000 |
500 |
6000 |
3600 |
3800 |
DN300 |
250 |
32000 |
|
Note: DN is flange connection，flange standard HG/T20592-2009Power consumption：100W
Power supply optional 380V/3ph/50Hz auxiliary heating
Over 500 cubic meters or other special standards can be customized
If the model, specification and color change, please be subject to actual product, there will be not further notice
